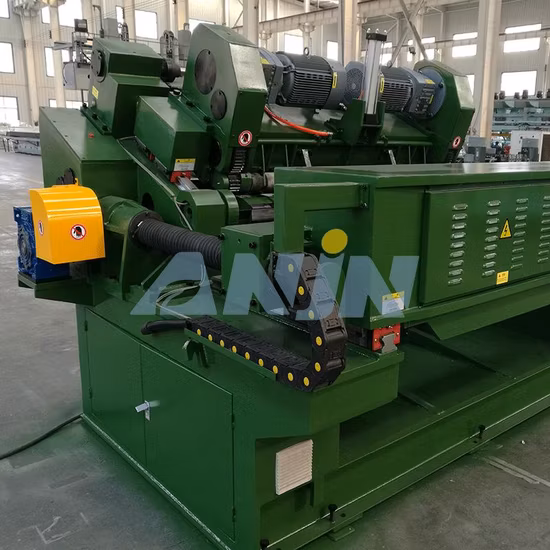

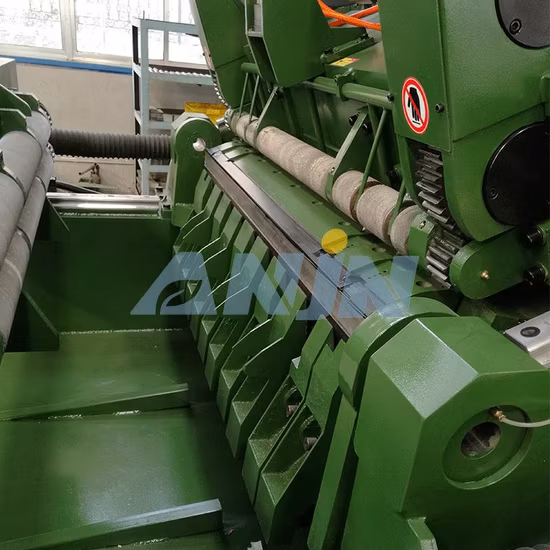

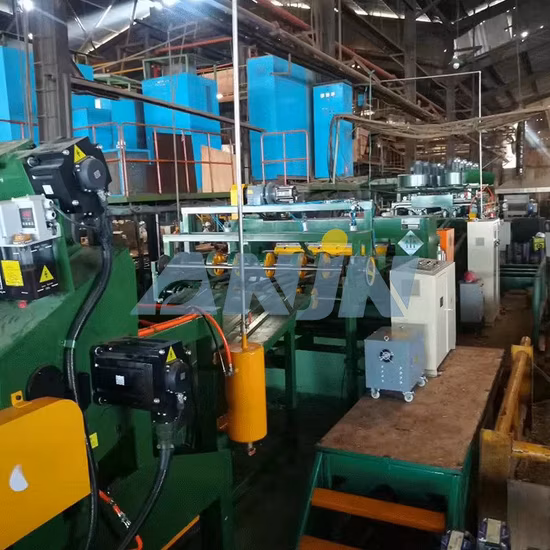

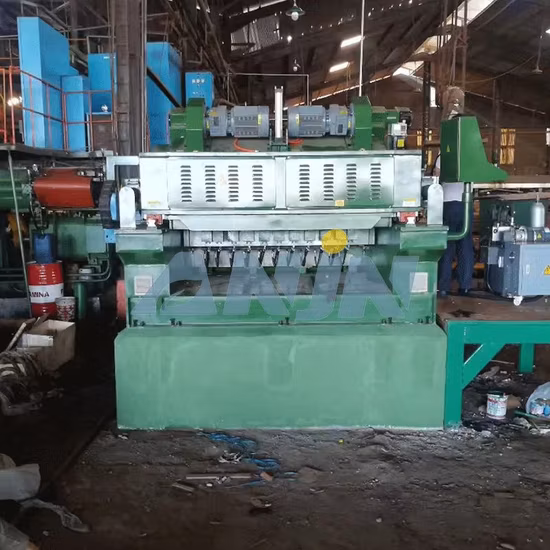

Automatic Veneer Stacker with Veneer Peeling Machine
Basic Info.
| Model NO. | YQVS |
| Motor Power | 2kw*6PCS |
| Overall Dimension | 11000mm*2800mm*2100mm |
| Weight | 4300kgs |
| Lifting Motor Power | 29kw |
| Linear Speed of Host Machine | 90m/Min Adjustable |
| Stacker Hight | 0-1200mm |
| Width of Veneer Stacking | 960mm-1270mm |
| Stacking Size | 660mm-2600mm |
| Transport Package | in Nude |
| Specification | 7500*3200*2100mm |
| Trademark | YUEQUN |
| Origin | China |
| HS Code | 8428330000 |
| Production Capacity | 20 Sets/Month |
Product Description
Veneer stacker machine
Main Function1.It's function is to pile up the cut veneer automaticlly, commonly installed after veneer peeling machine to save labour cost andimproving working efficiency.2.High quality, the machine has been tested and upgraded several time, production sill mature and quality guaranteed3.With First and Second Grade Veneer Grading and Sorting System."
Technical Data
| Veneer Stacker Machine | |
| Stacking size | 660mm-2600mm |
| Stacking veneer thickness | 0.5mm---3.6mm |
| Linear speed of host machine | 90m/min adjustable |
| Width of veneer stacking | 960mm-1270mm |
| Stacker hight | 0-1200mm |
| Motor power | 2kw*6pcs |
| Main power | 1.5kw+1.5kw+1.5kw+1.5kw |
| Lifting motor power | 29kw |
| Overall dimension | 11000mm*2800mm*2100mm |
| Weight | 4300kgs |
improving working efficiency.Good quality More than 2 decades manufacturing experience,A guarantee of quality manchinery. Also adopting premium raw material,leaving no margin for any defects in our products ONE-STOP SERVICE Experienced in manufacturing and exporting Simply place your order,leave the rest to us!
Why Choose Us:
(1) lasering your logo on products and designing logo is free
(2) Delivery time within 30days
(3) No else charge
(4) MOQ≥1
(5) Provide products quotation
(6) Provide Packaging customization service
(7) SupportWechat/Email/whatsapp/
(8) We specializein this field for 25 years
(9) Excellent after-sale system
(10) Supporting visits to factory
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ:
Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.
Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.
Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.
Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.
Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We}ll provide technical guidance.
